Dec. 22, 2017
Washable solar cells
A new stretchy and washable organic solar cell has opened up the possibility of textile-integrated solar power
Hard, flat solar panels are hardly something most people want to wear against their skin. However, flexible, washable solar cells are on the horizon thanks to a recent breakthrough by a team at RIKEN led by Takao Someya. The new organic, ultrathin photovoltaic cells can be stretched by half their length and withstand 20 simulated washing cycles. The possibilities are tantalizing. These properties mean the cells could, for example, be incorporated into textiles and Internet-of-Things devices (networked devices that can ‘talk’ to each other) to create electricity-generating clothing; power personal health monitors; and recharge mobile devices on the go.
An accordion in an elastomer sandwich
This is the first time that a single solar cell has combined a high energy efficiency, stretchability, and stability in air and water, explains lead researcher Kenjiro Fukuda from the Thin-Film Device Laboratory(Chief Scientist Laboratory) and the RIKEN Center for Emergent Matter Science (CEMS).
The work began, he says, when Kazuo Takimiya’s group at CEMS developed the solar cell’s ultrathin organic active layer, an organic photovoltaic (OPV). The layer converts sunlight into electricity at an efficiency of nearly 8 per cent, while also being very stable in air and water. Thicker OPVs can claim a peak conversion of 10 per cent—but for a photovoltaic material that is only 1 micrometer thick, 8 per cent is very high. And since the active material is very thin and based on an organic material, it can flex without breaking.

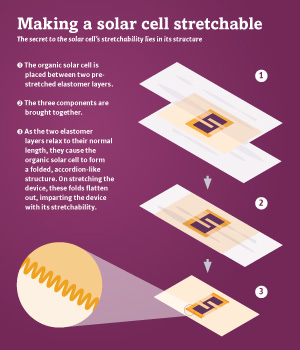

But the first solar cells produced with this active layer were not stretchable and were easily scratched. Fukuda’s group solved these issues by placing stretched rubber-like elastomer films over the outside. “First, we pre-stretch the elastomer and fix the ultrathin solar cells gently,” says Fukuda. “Next, the second elastomer is pre-stretched and attached, and we achieve this kind of sandwich structure.” When the elastomer films were allowed to relax, the embedded solar cell folded itself into an accordion-like structure with troughs and peaks.
This folded structure gives the cell its stretchability—when it is pulled, the folds flatten out, meaning the device can be extended up to half its length without damage.
The elastomer films also somewhat waterproofed the cells making them washable— something that the researchers tested by subjecting the cells to 20 cycles of mechanical compression while exposing them to water for one hour and 40 minutes. The cell’s efficiency dropped by only 20 per cent after this process.
Stretchy batteries needed
The hope is that these solar cells could power electronic devices such as sensors to measure a wearer’s heart rate, body temperature, blood pressure and other important medical parameters. They could also allow doctors to more easily monitor an out-patient’s condition as well as enable athletes to continually measure their performance. “Recently, smart sensors that monitor the heartbeat, pressure or electrodermal activity, have been attracting attention,” says Fukuda. “So there are now a lot of textiles with sensors embedded. By combining these technologies with our solar cells, we could achieve some very smart sensor clothes systems.”
In the future, if sufficiently high voltages and currents can be realized, solar cells in clothing could also be used to recharge mobile devices and may even be able to supply household electricity, meaning things like OPV awnings could be used in, for example, developing regions.
And if the solar cells could be combined with thin, lightweight batteries, their usefulness could be enhanced even further. “We need a very thin or stretchable battery system, but this very difficult to realize,” says Fukuda. “Batteries need some thickness to store a lot of power.” But he adds: “If we can find a suitable collaborator, we could realize good synergy between our team and a battery research group.”
Commercializing the technology
Currently, OPV models cannot compete against traditional inorganic solar cells for longevity and therefore price. Rooftop models target lifetimes of 20 years, while organic photovoltaic cells are targeting lifetimes of less than 10 years for glass-based products and less than five years for flexible products. German researchers Ning Li and Christoph J. Brabec noted this in a commentary piece on RIKEN’s OPVs for Nature Energy.
But Brabec, who is from the Department of Material Science at Germany’s Friedrich-Alexander University Erlangen-Nürnberg, says: “We got excited about [Someya and Fukuda’s] work as it fits excellently into what we suggest as the roadmap for OPVs….[We] believe that OPVs should concentrate on integrated applications.”
“Integration into bags, glasses, etc. has been around for quite some time, but integration into textiles hasn’t been possible because OPVs couldn’t be washed.”
Fukuda says that real-world practical applications are probably three to five years down the track, but already there has been interest from companies in commercializing the technology.
The two main hurdles that will need to be overcome are the cost and size of the solar cells. The cells are currently limited to 10 centimeters by 10 centimeters and are fairly expensive to fabricate. But this is mostly down to the cost of the active layer, says Fukuda. The film coating, he says, is actually very thin and will ultimately reduce costs. “If companies commercialize this technology, they could develop a way to mass-produce the active layer material and reduce the cost.”
“Many companies are interested in our technology and have contacted us recently,” he says. “Collaborating with a company will accelerate commercialization.”
Fukuda and his team are currently working on improving the cells’ stability in air and stretchability.
- 1. Jinno, H., Fukuda, K., Xu, X., Park, S., Suzuki, Y., Koizumi, M., Yokota, T., Osaka, I., Takimiya, K. & Someya, T. Stretchable and waterproof elastomer-coated organic photovoltaics for washable electronic textile applications. Nature Energy 2, 780−785 (2017). doi: 10.1038/s41560-017-0001-3
About the Researcher
Kenjiro Fukuda received his PhD from the Department of Applied Physics at the University of Tokyo in 2011. From 2011 to 2015, he worked at Yamagata University as an assistant professor before joining RIKEN, where he is a research scientist in the Thin-film Device Laboratory and Emergent Soft System Research Team at the Center for Emergent Matter Science. Since 2014, he has also been a PRESTO researcher of the Japan Science and Technology Agency. His research interests include organic transistor, and flexible and printed electronics.
