Feb. 27, 2023 Research Highlight Physics / Astronomy
An electrical change of phase using skyrmions
The magnetic state of a micrometer-scale material can be altered by applying an electrical current without changing the temperature
In a discovery that could have important implications for low-power computer memory, RIKEN researchers have shown that an entire sample can be switched between different magnetic states, or phases, simply by applying an electrical current1.
The atoms or molecules in a material can interact with one another in many ways and to different degrees. In gases, for example, atomic or molecular interactions are very weak, whereas in solids they are much stronger. And solids can have many more of these so-called phases of matter.
A specific phase might be defined by the relative physical arrangement of the atoms or molecules or by the alignment of their magnetic properties. And each type of ordering gives the material a different set of properties.
Changes between these phases are potentially a useful way to store data. For example, creating tiny magnetic swirls known as skyrmions has been proposed as an energy-efficient way of creating high-density computer memory. While each skyrmion is very small, the ability to change the phase across an entire sample opens exotic routes for controlling the properties of microscale materials.
“It’s well known that such global phase transitions can be induced by changing environmental parameters, such as the temperature, magnetic field or pressure,” explains Fumitaka Kagawa from the RIKEN Center for Emergent Matter Science. “But it wasn’t certain whether an electric current could induce global phase changes.”

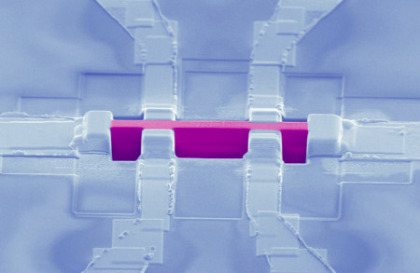

Figure 1: The magnetic state of a micrometer-scale bar of manganese–silicon (magenta bar in the center of the image) can be changed with an electrical current. Reprinted, with permission, from Ref. 1. Copyright (2023) by the American Physical Society.
Now, Kagawa and his colleagues have used an electrical current to induce a global phase change in an alloy made of manganese and silicon.
The team created an 18-micrometer-long bar of manganese–silicon alloy and connected electrical contacts to it. Electrical measurements confirmed the emergence of a skyrmion phase at a temperature of around −250 degrees Celsius.
When the team passed a current through the bar, they observed a change in the material’s properties that was indicative of a switch between a skyrmion and a non-skyrmion state. Their results were supported by numerical calculations.
Importantly, the team ruled out the possibility that this change occurred due to the current heating the material, so it was not a thermodynamic phase transition. Also, the same results were not seen in much larger samples, indicating that the confined geometry plays an important role in the non-thermodynamic phase change.
“A sample under a strong current is generally in what is called a non-equilibrium steady state, which is not well understood by today’s well-established theories of thermodynamics and statistical mechanics,” says Kagawa. “So our results make clear that dramatic phenomena such as phase changes can occur even in these poorly understood regimes.”
Fumitaka Kagawa and his colleagues have demonstrated a current-induced global phase change in micrometer-scale manganese–silicon. © 2023 RIKEN
- Heat flow controls the movement of skyrmions in an insulating magnet
- New mechanism enables the electrical control of the magnetization in magnetic nanodevices
- Manipulating tiny skyrmions with small electric currents
Rate this article
- 1. Sato, T., Koshibae, W., Kikkawa, A., Taguchi, Y., Nagaosa, N., Tokura, Y. & Kagawa, F. Nonthermal current-induced transition from skyrmion lattice to nontopological magnetic phase in spatially confined MnSi. Physical Review B 106 144425 (2022). doi: 10.1103/PhysRevB.106.144425
