Feb. 21, 2020 Research Highlight Physics / Astronomy
Measuring the magical wavelength of cadmium
Measurement of the magic wavelength of cadmium atoms opens the possibility of realizing extremely precise, portable clocks

Compact, ultraprecise clocks based on cadmium that can be operated in a room-temperature environment are closer to being realized thanks to the measurement of a key property of cadmium atoms by RIKEN physicists1. Such clocks could be used to measure local variations in the Earth’s gravitational field, making them useful for investigating earthquakes, volcanic activity and plate tectonics.
Clocks known as optical lattice clocks can measure time to incredibly high precision—so high that the time it would take for them to become out by half a second exceeds the age of the Universe.
“The accuracy of the clock frequency of state-of-the-art optical lattice clocks has reached 18 digits,” explains Atsushi Yamaguchi of the RIKEN Quantum Metrology Laboratory. “No other physical quantity can be determined to such a high precision.”
In optical lattice clocks, interfering laser beams generate an electric field distribution that resembles an egg carton, having alternating peaks and valleys. Atoms are trapped at the peaks, and another laser beam is used to excite transitions in these atoms. The frequency of these transitions is the ‘tick’ of the optical lattice clock.
So far, most optical lattice clocks have been based on strontium atoms, but some of the more accurate ones are operated in a cryogenic environment since strontium atoms are sensitive to environmental temperature fluctuations. Cadmium atoms are much less sensitive to temperature variations and thus optical clocks based on them could be operated in a room-temperature environment, making the clocks much more compact and portable.

As a first step toward realizing cadmium optical lattice clocks, Yamaguchi and co-workers have measured a property known as the magic wavelength.
The electric field of the laser light used to trap the atoms perturbs both the ground and excited states of the atoms and hence the transition frequency. But at one particular wavelength—the magic wavelength—the two states are shifted by exactly the same amount and hence the transition frequency is the same as that when the atoms are not trapped by laser light.
Optical lattice clocks exploit this property of the magic wavelength. “This is real magic because we can trap the atoms in a potential but then the energy separation between these states is unaltered so we can still measure the resonance frequency,” says Yamaguchi. “That’s the trick.”

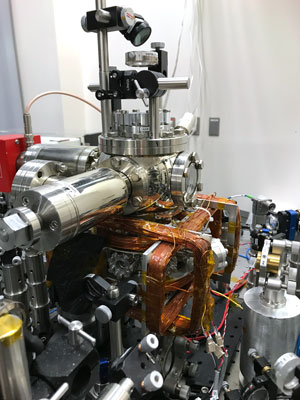

Cadmium has not been used for optical lattice clocks so far because deep-ultraviolet lasers are required for clock operation, which are difficult to make. To realize the measurement, Yamaguchi’s team collaborated with a group at the University of Arizona in the US and successfully built powerful and stable deep-ultraviolet lasers.
The team is now racing against other groups to make a cadmium optical lattice clock.
Related contents
References
- 1. Yamaguchi, A., Safronova, M. S., Gibble, K. & Katori, H. Narrow-line cooling and determination of the magic wavelength of Cd. Physical Review Letters 123, 113201 (2019). doi: 10.1103/PhysRevLett.123.113201
